Description

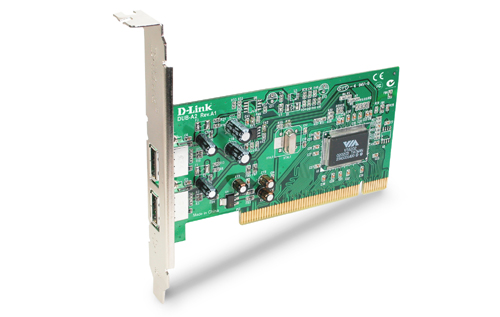

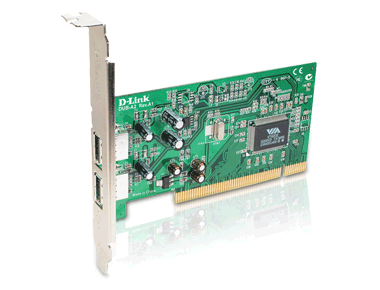

This D-Link® USB 2.0 Adapter is easily installed in a PCI slot and provides your desktop PC with two additional USB 2.0 ports.
The DUB-A2 is a Hi-Speed USB 2.0 2-port PCI adapter that upgrades desktop computers to the new and faster USB standard. This card is designed to work with mice, keyboards, external CD-R/RW's, external hard drives, PC cameras, and all other USB enabled devices. It is 40 times faster than previous USB adapters and 20% faster than Firewire (IEEE-1394). Each of the two USB 2.0 ports transfers data at 480Mbps
* (Megabits per second), making it ideal for external storage, backup, networking and digital video.
The DUB-A2 is certified to USB 2.0 standards and is backward compatible with USB 1.0 and USB 1.1 products. This gives you the ability to connect all of your USB 1.x devices to the DUB-A2 USB 2.0 adapter and they will work. Each port detects whether the connected device is USB 1.x or USB 2.0 and automatically runs the device at the correct speed.
The DUB-A2 supports Plug-and-Play installation which makes the DUB-A2 easy to install.
* Maximum transfer rate based on USB 2.0 specifications. Actual data throughput will vary.
Features
- High Speed 480Mbps* Transfer Rate
- Plug & Play
- Backwards Compatible with USB 1.1
Specifications
| Technical Specifications | | Standards | - USB Specification Version 2.0
- USB Specification Version 1.1
- USB Specification Version 1.0
- 0HCI 1.1 (Open Host Controller Interface)
- EHCI .95 (Enhanced Host Controller Interface)
| | Compatible Operating Systems | USB 2.0 Speed - Microsoft Windows XP, ME, 2000, 98 with USB 2.0 Support
USB 1.x Speed - Mac OS 8.6 to 9 with USB 1.x Support and USB Card Support 1.4.1
- Microsoft Windows XP, Me, 2000, 98 with USB 1.x Support
| | Ports | Two downstream USB Type "A" receptacles | | Connectivity | Up to 127 devices by cascading multiple hubs | | Supplied Current | 500mA per port | | Certifications | USB-IF | | Card Type | PCI Version 2.2 | | Operating Temperature | 0°C to 40°C | | Storage Temperature | 0 to 95%, non-condensing | | Humidity | 5% to 95%, non-condensing | | Compliances | | | Warranty | 1 Year |
|
Press Releases
September 25, 2002
Up To 480Mbps Of Bandwidth Plug And Play Installation 100% Backwards Compatible With USB 1.x Devices
|
|
|
