Description

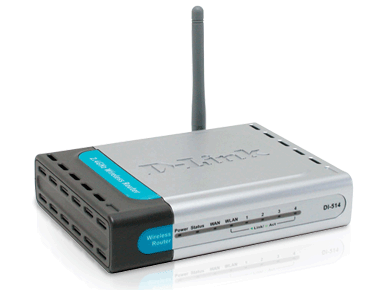

The DI-514 Wireless Router combines the proven stability of 802.11b wireless technology and D-Link’s own robust firewall security features. The DI-514 is ideal for those creating their first wireless network, as well as for more advanced users looking for additional management settings and policy-based content filtering. Filters can be set based on MAC address, IP address, URL and/or Domain Name.
D-Link, the industry leader in wireless networking, continues to offer breakthroughs in wireless connectivity. With the new D-Link
Air DI-514 Wireless Router, the latest member of the D-Link
Air™ family of competitively-priced wireless networking products, D-Link once again sets the new price/performance standard.
The DI-514 combines the proven stability of 802.11b wireless technology and D-Link's own robust firewall security features. The DI-514 is ideal for those creating their first wireless network, as well as for more advanced users looking for additional management settings and policy-based content filtering. Filters can be set based on MAC address, IP address, URL and/or Domain Name.
A simple yet intelligent, web-based setup wizard makes the DI-514 easy for any user to quickly and securely connect computers to share a high-speed Internet connection, files, resources, games or just to communicate. An integrated 4-port switch allows direct connection of up to four computers. Several wireless clients can also securely connect to the network using 64 or 128-bit WEP encryption.
Additional advanced features include pass-through of multiple concurrent IPSec and PPTP VPN sessions for telecommuters or for anyone who needs to transmit sensitive information more securely.
The D-LinkAir DI-514 is the ideal networking solution for small business, workgroups, home offices, and schools.
* Maximum wireless signal rate based on IEEE Standard 802.11b specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.
Features
- Easy Installation with Setup Wizard
- Built-In 4-port Switch
- Advanced Firewall & Parental Control
Specifications
Standards
| - IEEE 802.11b
- IEEE 802.3
- IEEE 802.3u
| | Ports | - 1 WAN 10/100Mbps Fast Ethernet
- 4 LAN 10/100Mbps Fast Ethernet
| VPN Pass Through / Multi-Sessions
| | | Advanced Firewall Features | - NAT with VPN Passthrough (Network Address Translation)
- MAC Filtering
- IP Filtering
- URL Filtering
- Domain Blocking
- Scheduling
| Embedded DHCP Server & Client
| | | Device Management | Web-Based – Internet Explorer v5.5 or later; Netscape Navigator v5.0 or later; or other Java- enabled browsers. | Wireless Signal Rate*
With Automatic Fallback | - 11Mbps
- 5.5Mbps
- 2Mbps
- 1Mbps
| | Data Encryption | 64/128-bit WEP | Media Access Control
| CSMA/CA with ACK | Wireless Frequency Range
| 2.4GHz to 2.462GHz | Wireless Operating Range**
| - Indoors: Up to 328 feet (100 meters)
- Outdoors: Up to 1,312 feet (400 meters)
| | Modulation Techniques | - 11Mbps (CCK)
- 5.5Mbps (CCK)
- 2 Mbps (DQPSK)
- 1Mbps (DBPSK)
| | Wireless Transmit Power | 15dBm +/- 2dB | | External Antenna Type | Single detachable reverse SMA | LEDs
| - Power
- WLAN
- Local Network
- WLAN (Wireless Connection)
| | Operating Temperature | 32°F to 131°F ( 0°C to 55°C) | Humidity
| 95% maximum (non-condensing) | Power Input
| Power Supply DC 5V, 2.5A | Safety & Emissions
| | Dimensions
| - L = 5.6 inches (142mm)
- W = 4.3 inches (109mm)
- H = 1.22 inches (31mm)
| | Weight | ~.44 lbs (200g) | | Warranty | 1 Year |
|
* Maximum wireless signal rate based on IEEE Standard 802.11b specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.
** Environmental conditions may adversely affect wireless signal range.
