Description

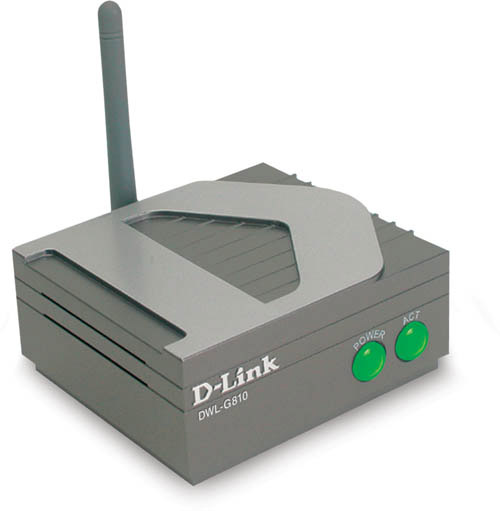

The D-Link 802.11g Wireless Bridge DWL-G810 converts virtually any Ethernet-based device - set-top box, game console, printer, laptop, or even destop - into a wireless network device.
D-Link announces another addition to the
D-Link AirPlus Xtreme™ G series of wireless networking products – the
DWL-G810 Wireless Bridge. The DWL-G810 converts your Ethernet-enabled device into an 802.11g wireless device.
Reduce network cable clutter in your home by easily converting your Ethernet-enabled devices into wireless devices, including Ethernet-enabled media set-top boxs or network printer.
While providing the convenience of wireless connectivity, experience exceptional performance that the D-Link AirPlus Xtreme G family of products continues to deliver. With a maximum wireless signal rate of up to 108Mbps*, the DWL-G810 transfers recorded video from your set-top box to your PC at blazing speeds.
Adding the DWL-G810 to your existing wireless network is simple. Through plug & play setup, the DWL-G810 can be quickly configured to connect to your wireless network in minutes. For advanced configuration, the DWL-G810 has a Web-based admin utility for easy management.
This compact Ethernet-to-Wireless adapter supports several advanced security features including Wi-Fi Protected Access (WPA) and 128-bit WEP encryption for an enhanced secure wireless connection.
The DWL-G810 works with all 802.11g networks and is backwards compatible with 802.11b networks. This high-speed Ethernet-to-Wireless Bridge provides convenience and performance while expanding the number of devices and peripherals into your wireless network.
* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
Features
- Up to 108Mbps*
- Ideal for Gaming Consoles and Media Set-Top Devices
- Plug & Play
- 802.11b Compatible
Specifications
| Standards | - IEEE 802.11g
- IEEE 802.11b
- IEEE 802.11
- IEEE 802.3
- IEEE 802.3u
| | Device Management | - Web-Based – Internet Explorer v6 or later; Netscape Navigator v6 or later; or other Java- enabled browsers.
| Wireless Signal Rates*
With Automatic Fallback | - Super G™ 108Mbps
- 54 Mbps
- 48 Mbps
- 36 Mbps
- 24 Mbps
- 18 Mbps
- 12 Mbps
- 11 Mbps
- 9 Mbps
- 6 Mbps
- 5.5 Mbps
- 2 Mbps
- 1 Mbps
| | Security | - 64/128-bit WEP
- WPA Wi-Fi Protected Access (64/128-bit WEP with TKIP, MIC, IV Expansion, Shared Key Authentication)
| | Media Access Control | CSMA/CA with ACK | | Wireless Frequency Range | 2.4 GHz to 2.4835 GHz | | Wireless Signal Range* | - Indoors: Up to 328 feet (100 meters)
- Outdoors: Up to 1,312 feet (400 meters)
| | Modulation Technology | - Orthogonal Frequency Division Multiplexing (OFDM)
- Complementary Code Keying (CCK)
| | Receiver Sensitivity* | - 54 Mbps OFDM, 10% PER, -68 dBm
- 48 Mbps OFDM, 10% PER, -68 dBm
- 36 Mbps OFDM, 10% PER, -75 dBm
- 24 Mbps OFDM, 10% PER, -79 dBm
- 18 Mbps OFDM, 10% PER, -82 dBm
- 12 Mbps OFDM, 10% PER, -84 dBm
- 11 Mbps CCK, 8% PER, -82 dBm
- 9 Mbps OFDM, 10% PER, -87 dBm
- 6 Mbps OFDM, 10% PER, -88 dBm
- 5.5 Mbps CCK, 8% PER, -85 dBm
- 2 Mbps QPSK, 8% PER, -86 dBm
- 1 Mbps BPSK, 8% PER, -89 dBm
| | Wireless Transmit Power | 15 dBm (32 mW) ± 2dB | | External Antenna Type | 1.0dB gain with reverse SMA connector | | Temperature | - Operating: 32°F to 149°F (0°C to 55°C)
- Storing: 4°F to 167°F (-20°C to 75°C)
| | Humidity | 95% maximum (non-condensing) | | Power Input | Ext. Power Supply DC 5V, 2.0A | | Safety & Emissions | | | Dimensions | - L = 3.5 inches (90mm)
- W = 3.2 inches (82mm)
- H = 1.6 inches (40mm)
| | Weight | 0.34 lbs (153g) | | Warranty | 3 Year |
|
* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.Press Releases
