Description

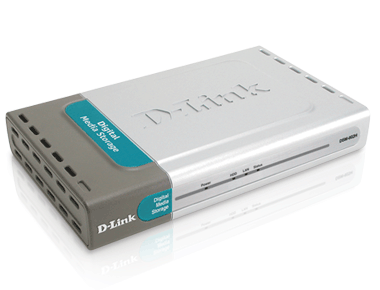

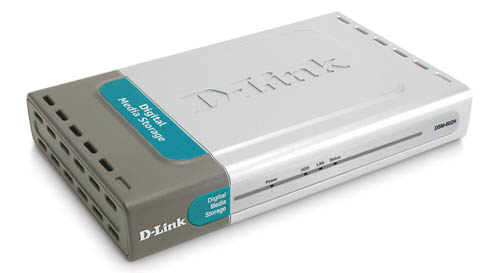

The D-Link DSM-602H Central Home Drive is a 20GB network attached storage device for the digital home. It allows home users to access a central drive for sharing and storing family photos, digital music and other types of files.
D-Link®, a leader in the networking industry, introduces the MediaLounge™ DSM-600 Series of Central Home Drives. The 20GB DSM-602H Central Home Drive is a portable and removable external Fast Ethernet hard disk drive. Connect one directly to a PC for additional personal storage space or add it to a local area network so that everyone on the network can access the drive.
The DSM-602H Central Home Drive provides a fast and easy way to add high-performance storage to your digital home, school or small business network. This device is ideal for sharing digital photos, movies, music, or other files.
The DSM-602H Central Home Drive features both UPnP™ (for devices running Windows XP and Me) and Rendezvous™ (for Mac OS X or Linux systems.) Since the drive is immediately visible and available to everyone on the network, you can use it to share files or collaborate on projects. The DSM-602H Central Home Drive is also hot-swappable so you can connect and disconnect it from a network at any time.
The DSM-602H Central Home Drive adheres to the Universal Plug & Play AV (UPnP AV) specification, allowing it to communicate seamlessly with other UPnP AV media devices.
The Fast Ethernet port on the device is Auto MDI/MDI-X, accepting both straight-through and crossover Ethernet cables for high-speed network connectivity. With up to 10/100Mbps data transfer speeds, stream music and Videos in real-time or instantly retrieve files from the Central Home Drive.
The MediaLounge DSM-600 Series provides added convenience for networking as a simple and speedy storage solution.
Features
- Instant Network Storage
- Fast Ethernet Performance
- Plug and Play, For Windows XP, Me (UPnPTM) and Mac OS X (RendezvousTM)
- No Direct Connection to a Computer Necessary
Specifications
| Technical Specifications | | Standards | - IEEE 802.3
- IEEE 802.3u
- UPnP™ AV 1.0
- Rendezvous™ (Mac OS X)
- UPnP™ (Windows XP, Me)
| | Management | - Web-based – Internet Explorer v5.x or above, Netscape 6.2.x or above, Apple Safari, Linux Nantilus
- DHCP Client
| | LEDs | - Power
- HDD (Hard Disk Drive)
- LAN (10/100)
- Status
| | Temperature | - Operating Temperature: 32°F to 149°F (0°C to 55°C)
- Storing Temperature: -4°F to 158°F (-20°C ~ 70°C)
| | Humidity | 5% ~ 90% (non-condensing) | | Power | - Power Input
- External Power Supply DC 5V 2.5A
| | Certifications | | | Dimensions | - L = 7.56 inches (192mm)
- W = 4.57 inches (116mm)
- H = 1.18 inches (30mm)
| | Weight | 0.86lbs (388g) | | Warranty | 1 Year |
|
